FAQ

Common questions, with short answers. Longer treatments live in Architecture, the Roadmap, and the Developer Guide.

How is this different from Headlamp / Lens?

Headlamp and Lens are general-purpose Kubernetes UIs — they render every resource type, support every action you'd otherwise do with kubectl, and target the day-to-day "browse and edit" loop.

KubeAtlas is only the dependency graph. It doesn't render Pods as a list to manage them; it tells you what depends on what. The two tools coexist — install Headlamp for "show me the cluster" and KubeAtlas for "show me the wiring". A Headlamp plugin shipped in v1.1 (lithastra/kubeatlas-headlamp-plugin) that embeds the cartography topology view, per-resource Dependencies tabs, and blast-radius mode directly inside Headlamp's cluster console:

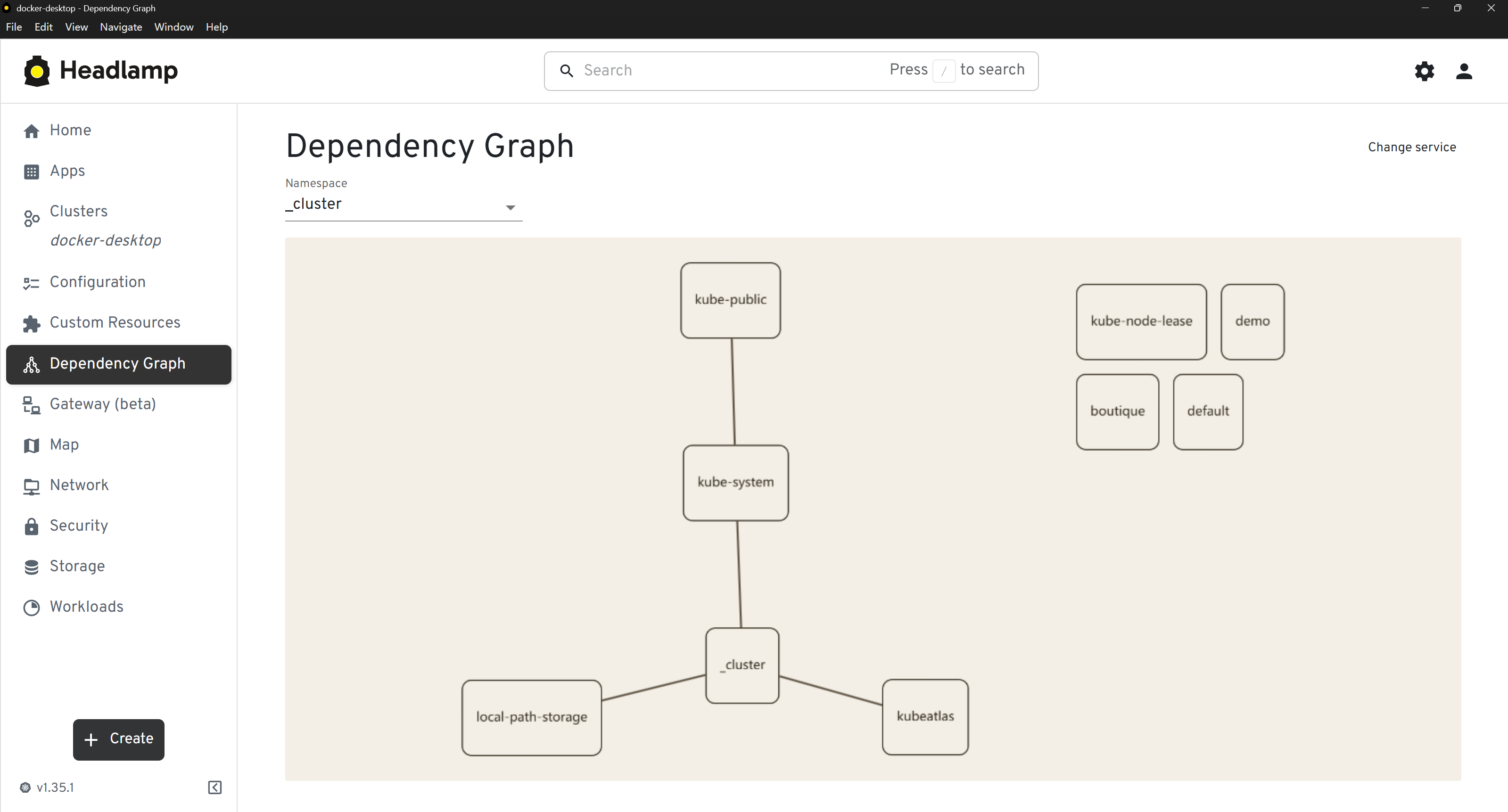

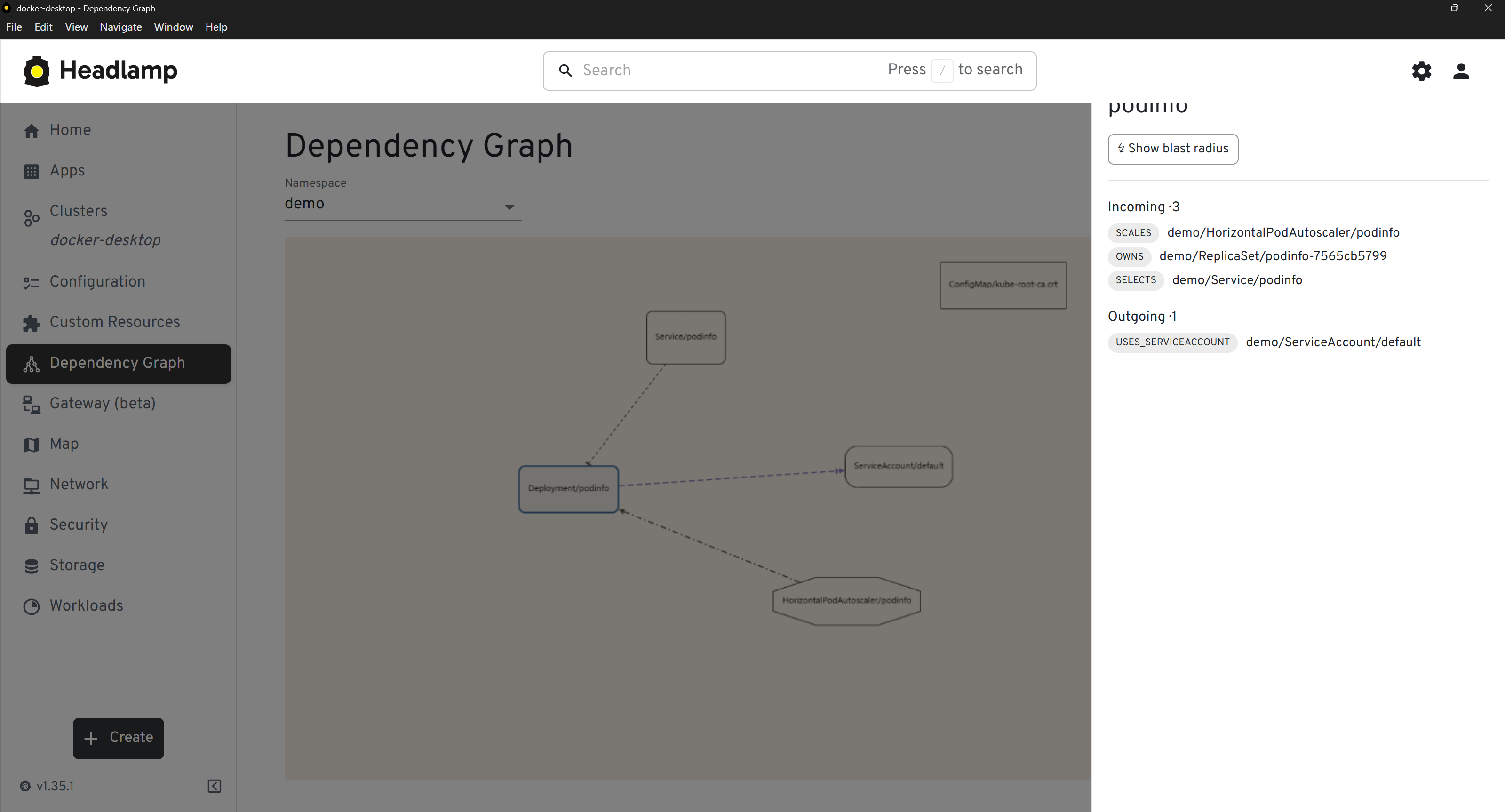

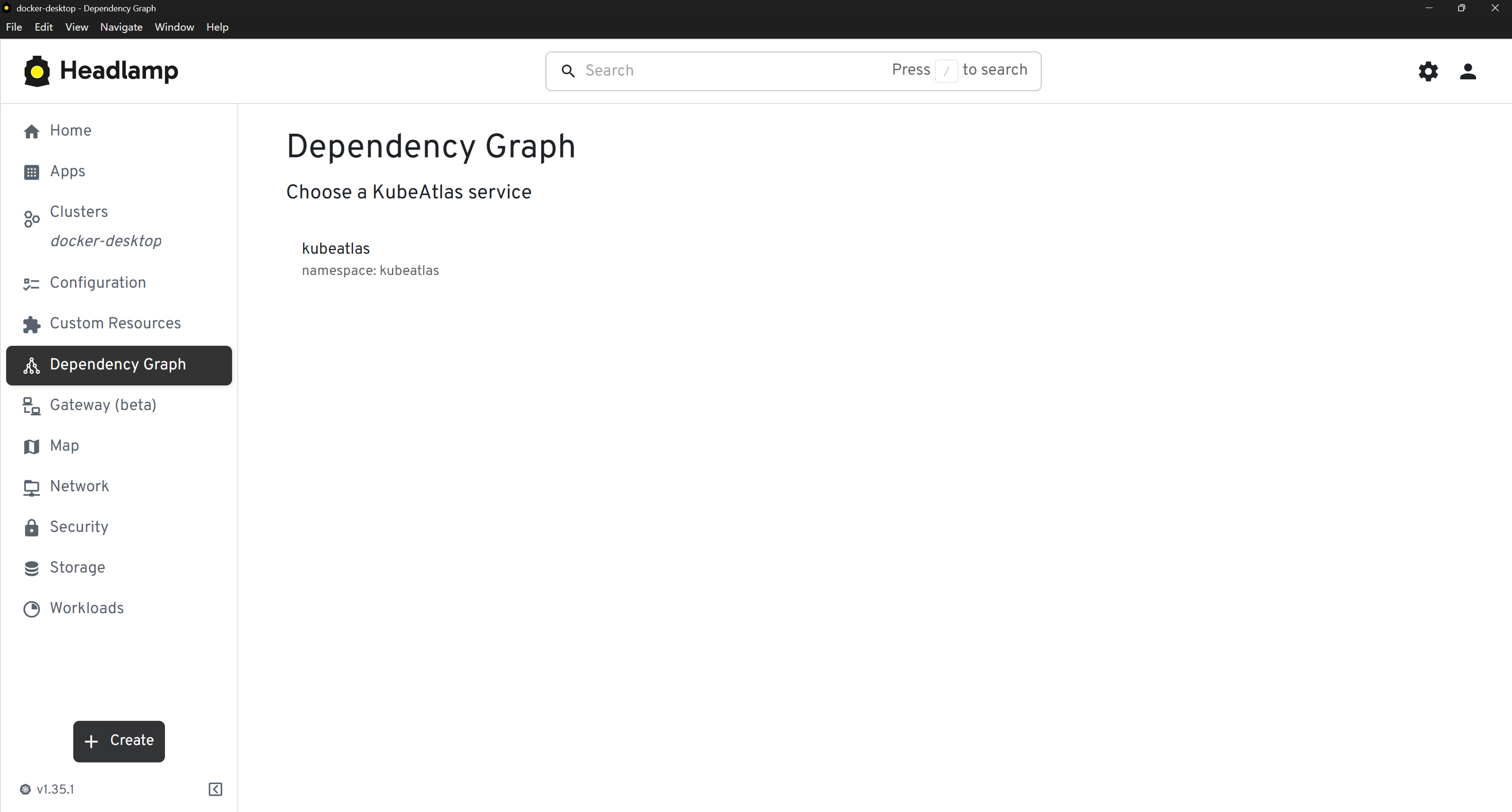

Sidebar entry	Cluster view	Per-resource detail

Can I run this in production today?

The published v1.5.2 release can be used for read-only introspection within its documented single-replica, authentication, and persistence boundaries. Select 1.5.2 in the documentation version menu for instructions that match those artifacts. Current main is the unreleased v1.6 development line; its new vanilla-Kubernetes production matrix is not a released support claim until all v1.6 gates pass.

From v1.0 the chart ships an opt-in Tier 2 backend (PostgreSQL + Apache AGE via a CNPG-managed Cluster; install the cluster-scoped operator first) so restart preserves the graph. Single- replica is still the deploy shape. Multi-cluster federation ships in v1.3.0: one KubeAtlas instance can attach to N kubeconfigs, the /api/v1/federation/* endpoints return a flat federated read surface, and the Web UI's left cluster strip picks members from /federation/clusters. See the roadmap. Authentication is still your job — read the security warning before exposing the UI.

Does it work on OpenShift / EKS / AKS / GKE?

The planned v1.6 production support matrix is vanilla Kubernetes 1.34–1.36, matching the three upstream-maintained minor branches at code freeze. Discovery is GVR-driven, so platform-specific add-ons may work when their CRDs and explicit read-only RBAC are present, but EKS, AKS, GKE, and OpenShift are not v1.6 release-gating environments and must not inherit a production-support claim from the vanilla matrix.

OpenShift integration has shipped since v1.0: the detector at startup notices route.openshift.io, auto-loads the embedded rule pack (Route, DeploymentConfig, BuildConfig, ImageStream, SecurityContextConstraints), and the docs include a CRC and OCP 4.x install guide — see OpenShift installation.

Deeper platform integration (IRSA on EKS, Workload Identity on GKE, AAD on AKS) is on the longer-term roadmap.

How much memory does it use?

Steady state on a 1000-resource cluster is around 110 MB RSS. The chart's default limit is 512 Mi, which leaves headroom up to roughly 4000–5000 resources. Past that, raise resources.limits.memory — see the Helm reference.

What if my cluster has 50K resources?

v1.0 is comfortable in the small-to-medium range (≤ ~5K-10K resources). Above that you'll hit two ceilings: graph footprint in memory and JSON serialisation latency on the level=cluster endpoint. Tier 2 storage moves the graph out of the process so the memory side is no longer the bottleneck, but the aggregator response shape is still O(R) — see the stress-test-5k fixture for a worked baseline. Response-shape pagination is a post-v1.2 target.

Why is there no built-in authentication?

Building a good auth story for a generic web UI is a year of work on its own — OIDC IdP integrations, token refresh, session storage, RBAC mapping. The Kubernetes ecosystem already has battle-tested choices (oauth2-proxy, Pomerium, Cloudflare Access). KubeAtlas deliberately punts to those rather than ship a half-baked first version. Read the security warning before exposing the UI.

When will Tier 2 / Rego / Headlamp plugin be ready?

All shipped: Tier 2 and Rego rule packs in v1.0, the Headlamp plugin in v1.1. See the roadmap for what's next.

How do I extend it with custom edge types?

Two paths, depending on whether you want to ship a binary fork or load a rule at runtime:

• Runtime Rego rule pack — the extension surface. Declare CRD edges in Rego, sign and publish to an OCI registry, point rulePacks.extras at the artifact. No rebuild required. See lithastra/kubeatlas-rules for the canonical examples (openshift, cert-manager).
• Built-in Go extractor — for edges that should ship as defaults. The Developer Guide has the worked example: implement extractor.Extractor, register in extractor.Default(), add a contract test.

Does it phone home / collect telemetry?

No. Zero outbound network calls at runtime. The binary talks to your Kubernetes apiserver and that's it — no analytics, no usage reporting, no remote config.

What's the relationship with Lithastra / PlanWeave?

Lithastra is the umbrella the project ships under. PlanWeave is a separate Lithastra product — KubeAtlas neither depends on it nor pushes data to it. The two share an organisation, not a runtime.

KubeAtlas is Apache-2.0 licensed, governed under the GOVERNANCE.md in the repo, and accepts contributions from anyone — see the Developer Guide.

My question isn't here.

Open an issue or start a discussion. FAQ entries are added when the same question shows up twice.
