Historical snapshots

The live graph answers "what does the cluster look like now?". Snapshots answer the follow-up SREs actually ask during an incident: "what changed?". When KubeAtlas records every resource add, update, and delete into an append-only event stream, the diff endpoint can replay a time window and tell you exactly which resources appeared, vanished, or were modified between two points.

Tier 2 only

Snapshots are a Tier 2 feature — they need the PostgreSQL backend. The event stream is an append-only table; a Tier 1 in-memory install has nowhere durable to keep it, and a feature that silently loses history on every Pod restart is worse than no feature at all.

This is enforced, not just documented:

• The Helm chart's values.schema.json rejects snapshots.enabled=true unless persistence.enabled=true.
• The snapshot API endpoints return 503 Service Unavailable on any install where the writer is not running — Tier 1, or Tier 2 with snapshots.enabled=false.

The memory backend does carry a tiny fixed ring buffer of recent events, but that exists only so the unit tests have something to exercise. It is not a Tier 1 feature and is not exposed through the API.

How it works

informer event ──▶ Writer.Enqueue ──▶ bounded queue ──▶ worker pool ──▶ PostgreSQL
   (hot path)        (non-blocking)                       (N workers)    resource_events

The snapshot writer subscribes to the same informer pipeline that feeds the live graph. Beginning with v1.5.2, every event is metadata-only: resource payloads are cleared before entering the queue, and PostgreSQL enforces resource_events.data IS NULL. The key property is that it never blocks the informer:

• Enqueue is non-blocking. It drops the event onto a bounded channel and returns immediately.
• A pool of worker goroutines drains the channel into PostgreSQL in the background.
• If the queue is full — a burst arriving faster than the workers can write — the writer sheds the oldest queued event rather than stalling the informer. Every shed event increments kubeatlas_snapshot_queue_drop_total.

Dropping under sustained overload is a deliberate trade: a slightly incomplete event stream is acceptable; an informer that falls behind the API server is not. In practice the queue absorbs normal churn comfortably — drops only appear under pathological write storms, and the diff endpoint is anchored by periodic full-sync markers (below) so a few missed deltas do not compound.

Full-sync markers

Alongside the event stream, KubeAtlas writes snapshot markers — rows in snapshot_meta that record "at this timestamp the cluster held N resources". A marker is a known-good anchor the diff walks from. Markers are written:

• periodically, by the optional Helm CronJob (snapshots.fullSyncSchedule), which calls the internal trigger endpoint;
• manually, via kubeatlas snapshot trigger or a direct POST to the internal trigger endpoint.

GET /api/v1/snapshots lists these markers, most-recent first.

Retention

The event stream is pruned to a configurable window — snapshots.retention, default 7d. An hourly background retainer deletes every event older than the window in batched DELETEs so the prune never holds a long transaction.

Retention bounds two things at once: the table's disk footprint, and the maximum diff window. The diff endpoint rejects any from/to window wider than the retention period — events beyond the window have been pruned, so a wider diff would silently under-report changes. Asking for more history than you keep is a 400, not a partial answer.

Reading the diff

The Web UI surfaces snapshot diffs in two places:

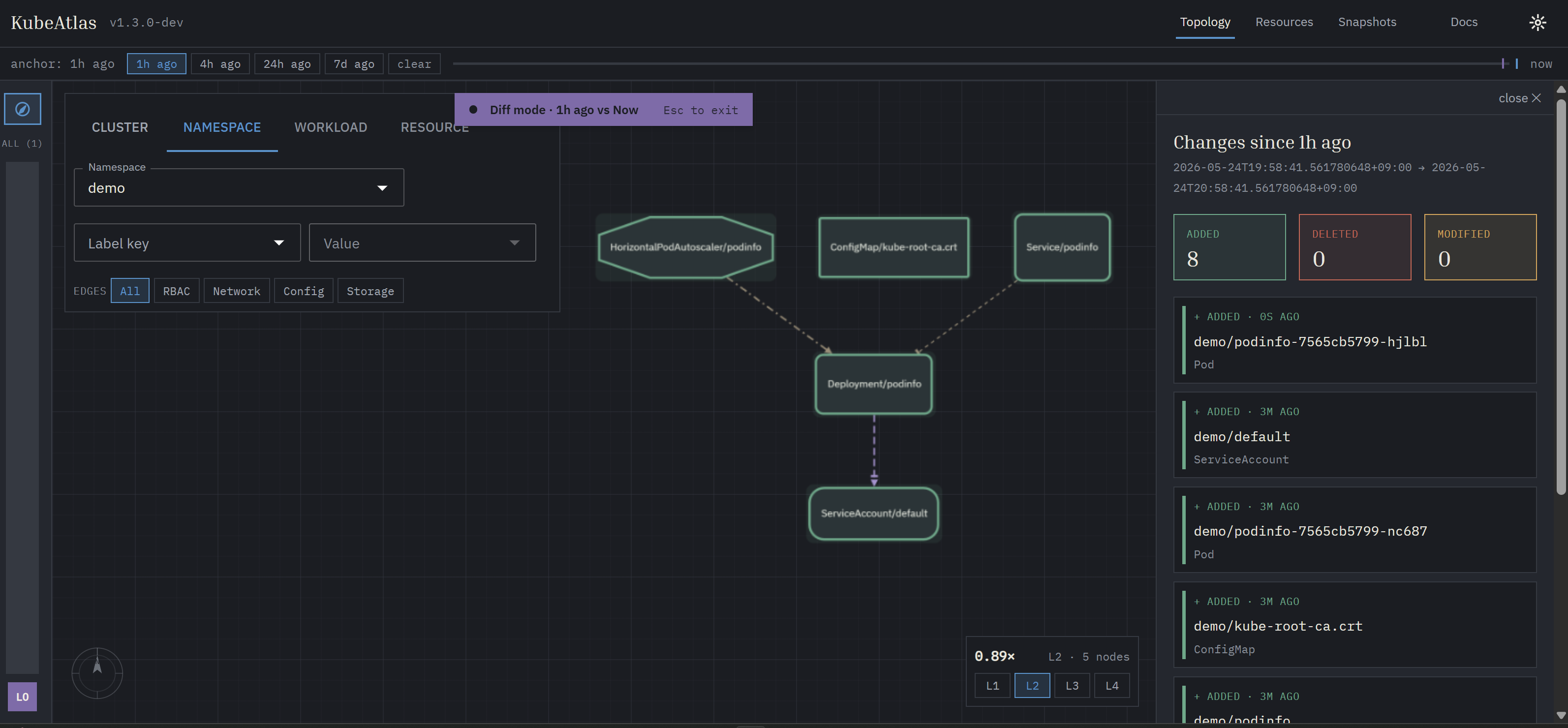

• The time-axis rail at the top of the topology canvas — pick an anchor (preset chip or drag the rail itself) and the canvas enters diff mode: added resources gain a green halo, removed ones drop to a dashed muted outline, modified ones get an amber overlay. Esc clears.

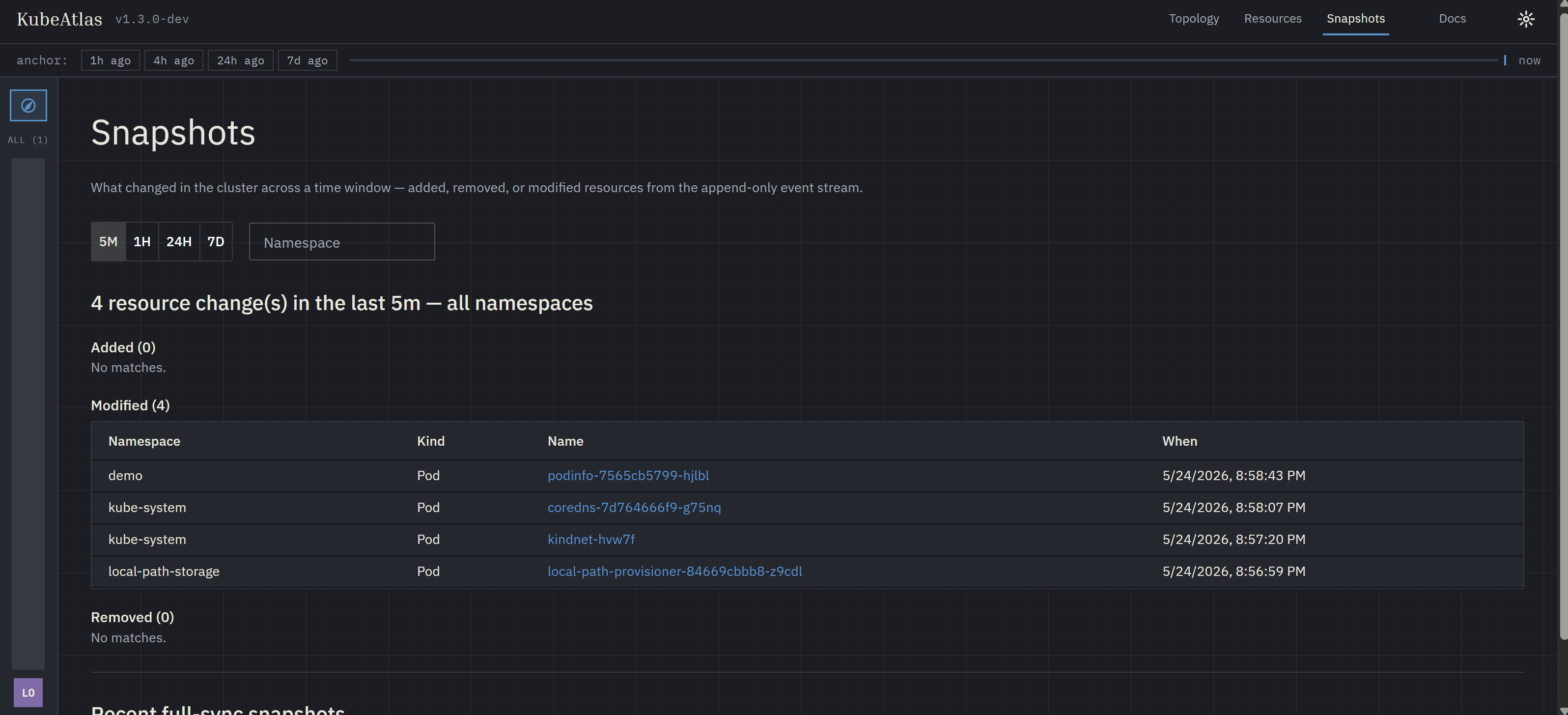

• The dedicated Snapshots page — a window-picker driven view with three tables (Added / Removed / Modified) plus a timeline of recent full-sync markers; the same data the API surfaces, in a denser tabular form.



Under both, the wire format is the same:

GET /api/v1/snapshots/diff?from=1h&to=now replays the event stream across the window and classifies every resource that appears in it:

Bucket	Meaning
added	First event in the window is an add; no later delete
removed	Last event in the window is a delete
modified	Seen, but neither freshly added nor removed

from and to accept now, a duration read as "ago" (5m, 1h, 7d), or an absolute RFC3339 timestamp. to defaults to now. An optional namespace restricts the diff to one namespace; omit it for the whole cluster.

The diff and its backing event table contain resource identity and metadata — kind, namespace, name, UID — not full resource bodies. It tells you what changed and when; reach for kubectl or your audit log for the field-level how.

See the API reference for the full request and response shapes.

Enabling snapshots

Install CloudNativePG chart 0.29.0 (operator 1.30.0) first as described in Persistence (Tier 2), then enable both persistence and snapshots:

helm upgrade --install kubeatlas oci://ghcr.io/lithastra/charts/kubeatlas \
  --version 1.5.2 \
  --namespace kubeatlas --create-namespace \
  --set persistence.enabled=true \
  --set persistence.embedded.enabled=true \
  --set snapshots.enabled=true \
  --set snapshots.retention=7d

Tuning knobs, all under snapshots in values.yaml:

Value	Default	What it controls
enabled	false	Master switch (requires persistence.enabled)
retention	7d	Event-stream window and max diff width
queueSize	see chart	Writer queue capacity before drop-oldest kicks in
workers	see chart	Number of goroutines draining the queue into PG
fullSyncSchedule	see chart	Cron schedule for the periodic full-sync marker

Observability

The writer exports Prometheus metrics on /metrics when it is running:

Metric	Type	Meaning
kubeatlas_snapshot_events_processed_total	counter	Events durably written to PostgreSQL
kubeatlas_snapshot_queue_drop_total	counter	Events shed at enqueue under queue-full backpressure
kubeatlas_snapshot_write_failed_total	counter	Events dropped after the per-event retry budget was exhausted
kubeatlas_snapshot_queue_depth	gauge	Events currently buffered in the writer queue

A healthy install shows processed_total climbing with cluster churn and both drop counters flat at zero. A steadily rising queue_drop_total means the queue cannot keep up — raise snapshots.workers or snapshots.queueSize. A rising write_failed_total instead points at PostgreSQL itself — check the database's health and connectivity.
